Honing & Finishing Systems
Delivering precision geometries, controlled cross-hatch angles, and micro-inch surface textures for high-stress industrial applications.
ARIHANT HT VERTICAL HONING MACHINES
HT VERTICAL MACHINE POWERFUL, RUGGED AND PRECISE
Arihant’s high-precision honing machines represent the very finest solutions available anywhere in the world. They are reliable, durable, and flexible systems designed to deliver the production quality and precision our customers have grown to expect.
From design to delivery, you have Arihant’s commitment to Quality and Service assurance. Our team will work with the customer to determine the number of spindles, tooling, fixturing, abrasives, in-process and/or post-process gaging, and method of parts loading and unloading (including robotics) as per customer requirement. Then we’ll provide you a written proposal.
After your system is built, we’ll set up a demonstration at our facility. Once it meets all specifications, Installation and commissioning will be done by our experts at your facility.
| Technical Feature | Operational Specification |
|---|---|
| Minimum Honing Diameter | 6 mm |
| Maximum Honing Diameter | 1200 mm |
| Maximum Honing Length | 1500 mm |
| Spindle Speeds | 30 - 2000 RPM |
| Spindle / Stroke / Expansion | High-precision Servo System |
| Control Interface (HMI) | 12 inch touch screen PLC panel |
| Spindle Power | 10 HP |
| Stroker Power | 7.5 HP |
| Spindle Expansion | 1 kW servo motor |
Vertical Honing Systems in Action
25 VA X 4 CNC
Watch Vertical Honing System in action
100 VA CNC
High-precision automated vertical honing system
HONE-TECH 100 HA NC
Arihant's Fully Automatic Horizontal Honing Machine model HONE-TECH 100 HA NC
Our Horizontal Honing machines are highly reliable and durable. This machine makes it easy to setup, easy to operate with more features, more capability, and increased reliability and maintainability.
PLC controls allow all machine settings to be handled through a 9 inch touch screen. Setups can be saved and retrieved, while a robust servo-controlled ball screw stroker assures precise positioning and consistent performance. Servo expansion ensures high precision and production.
| Technical Feature | Operational Specification |
|---|---|
| Diameter Range (ID) | 5 - 100 mm |
| Stroke Travel | 6 - 300 mm |
| Spindle Speed | 200 - 3000 RPM |
| Spindle Power | 4.1 kW (5.5 HP) |
| Stroker Power | 2 kW servo / 2.5 kW servo (3.4 HP) mechanical stroking |
| Stroking Rate | 10 - 250 SPM (dependent on stroke length) |
| Expansion System | Servo linear / Mechanical expansion with auto shut off |
| Coolant Pump | 0.5 HP |
| Coolant Capacity | 200 Liters |
Horizontal Honing Systems in Action
HONE-TECH Horizontal Honing
Watch Fully Automatic Horizontal Honing Machine model HONE-TECH 100 HA NC
ARIHANT HT-CNC Tube Honing Machine
Powerful, High-capacity Long-Part Honing Systems
Designed for low to medium production, the ARIHANT HT-CNC is the first competitively priced large part honing machine on the market. With a robust servo stroking system, the ARIHANT HT-CNC produces precise bore geometries on hydraulic tubes, oilfield components, multi-bore cylinder blocks, turbines and other similar heavy-duty applications.
Ideal for both job shops and repair facilities, the ARIHANT HT-CNC is available with a variable speed spindle motor, powerful enough to drive two-stage, metal-bond diamond abrasives for short cycle times with high accuracy and minimal labour. Screen size is 15 inch and PLC controlled with a large color screen touch for ease of use and rapid setup.
Built to handle large parts including multi-bore blocks, the system is designed for fast, efficient floor-to-floor cycles, setup and changeover in minutes, and fully enclosed CE-compliant operation.
| Technical Feature | Operational Specification |
|---|---|
| Inside Diameter (ID) | 25 - 1000 mm |
| Outside Diameter (OD) | 60 - 1100 mm (optional 1000 mm) |
| Stroke Length Options | 2000 / 3000 / 4000 / 6000 / 8000 / 10000 / 12000 mm |
| Stock Removal Rate | Up to 1000 cm³ / hour |
| Spindle Servo Motor | 10 kW (Speed Range VFD: 15 - 450 RPM) |
| Stroke Servo Motor | 5.2 kW (Speed Range: 0.1 - 40 m/min) |
| Tool Feed Servo Motor | 3.5 kW (Rotary & Linear tool feed motion) |
| Machine Dimensions | Length 6200 - 27200 mm / Width 1200 - 1500 mm / Weight 2600 - 7800 kg |
| Work Holding Fixture | Universal V-type chain fixture (30 - 400 mm diameter) |
| Computer Control | 15 inch screen |
| Electrical System | 400 - 460 VAC, 50/60 Hz |
| Pneumatics | 6 bar |
| Coolant Tank Capacity | 300 L (up to 4m stroke) / 500 L (6m to 12m stroke) |
| Magnetic Separator | 70% cleaning rate |
| Safety Features CE | Front light curtain; back and sides guarded with safety fencing |
Through-Feed Superfinishing Machine 1200 TF NC / 1000 TF
Superfinish Machining of Cylindrical and Tapered Rollers
In centerless through-feed and plunge superfinishing machines, Arihant offers the highest quality at maximum throughput. The 1000 TF / 1200 TF series are high-precision, high-production centerless through-feed superfinishing machines. Depending on the workpiece dimensions, many parts per minute can be machined simultaneously, while meeting the highest demands regarding geometrical tolerances and surface qualities.
Features servo-driven rollers up to 1000 mm in length, quick change of stones and stone holders, and stone pressing/lift control via pneumatic proportional valves. Pressure setting is handled via the HMI program, with loading and unloading systems, a 3-mass oscillator, servo vertical NC-axis height adjustment, and up to 12 tool heads for optimal finishing results.
Typical workpieces include spherical rollers, cylindrical rollers, tapered rollers, piston pins, piston rods, and rollers. The machine supports fast changeover of less than 30 minutes and optional automatic loading and unloading systems with part storage capacity.
| Workpiece / Specification | WordPress Source Value |
|---|---|
| Pre Operation - Diameter pins up to Ø 15 mm | Ra 0.1 - 0.15 µm |
| Pre Operation - Diameter pins Ø 17 - 26 mm | Ra 0.15 - 0.25 µm |
| After Finishing - up to Ø 15 mm | Ra < 0.009 µm |
| After Finishing - Ø 17 - 26 mm | Ra < 0.02 µm |
| Shock Absorber | Ra ≤ 0.02 µm / Rz ≤ 0.015 µm |
| Arihant 500 TF / 1200 TF | 5 - 30 mm diameter, up to 100 mm length / 8 - 60 mm diameter, up to 400 mm length |
| Tool Heads / Changeover | Up to 12 tool heads / Fast changeover in less than 30 min |
Through-Feed Finishing in Action
500 TF
Centerless through-feed superfinishing machine
ARI-HONE 800 TF NC
High-precision NC-controlled centerless superfinisher
1000TF
High-volume through-feed superfinishing system
Arihant Shaft-Fin Series
Modern and Trendsetting Shaft tape-finishing systems for prototypes and high-volume production
The Arihant Shaft-Fin Series entails a modern and trendsetting system with numerous improvements for prototypes. The new design ensures the highest surface quality while significantly reducing idle times. Extra-large, quickly changeable tape cassettes are easily accessible, and change-over times are reduced to an absolute minimum.
Intelligently designed tooling units permit the machining of shafts with journal distances of just 33 mm and lengths of up to 1600 mm. Flexible configuration options ensure that a broad range of part specifications can be met.
| Technical Feature | Operational Specification |
|---|---|
| Between Center Distance Options | 500 / 750 / 1000 / 1500 mm |
| Maximum Shaft Diameter | 200 mm |
| Spindle / Axis | Servo |
| Total Connected Power | 15 kW |
| Minimum Journal Distance | 33 mm |
| Pneumatic | 5 bar |
ARIHANT FLAT & SPHERICAL FINISHING MACHINES
Flexible superfinishing of flat, spherical and special surface geometries
The Arihant Flat-Fin with rotary transfer includes a centrally positioned column used to align the machining units. The rotary table, designed as a torque motor, can mount up to 6 workpiece spindles depending on the model.
The high momentum for rotary transfer allows auxiliary process time to be reduced to 0.8 seconds. Peak time-neutral loading and unloading is enabled because all stations work simultaneously. Typical transfer times are between 6 and 12 seconds, and double or triple machining operations allow two to three workpieces to be finished per transfer.
Spherical finishing machines are used for flexible superfinishing of geometries and surfaces of spherical parts, improving surface roughness, roundness, seating, friction and wear performance.
Where there is a demand for extreme precision, superfinishing achieves the highest form and surface qualities. The process eliminates amorphous surfaces, increases internal compressive tension, generates a metallurgically pure surface structure, minimizes friction, and increases load capacity and performance.
Spherical finishing advantages include minimisation of surface roughness, improved roundness, better seating for ball joints, and reduced friction and wear. Special machine features include dimensional stability, accuracy with minimum tool wear, up to two parallel machining processes, cycle time-neutral loading and unloading, positioning of the centre of the ball, and easy setup from all sides.
| Technical Feature | Operational Specification |
|---|---|
| Minimum Diameter | 3 mm |
| Maximum Diameter | 150 mm |
| Automatic Diameter / Stroke | 110 mm / 100 mm |
| Manual Stroke Length | 150 mm |
| Spindle Speed | 50 - 3000 RPM |
| Spindle / Stroker / Expansion | Servo |
| HMI | 7 inch |
Special Finishing Systems in Action
Elliptical Finishing Vertical
CNC-controlled vertical elliptical superfinishing demo
Elliptical Finishing Horizontal
CNC-controlled horizontal elliptical superfinishing demo

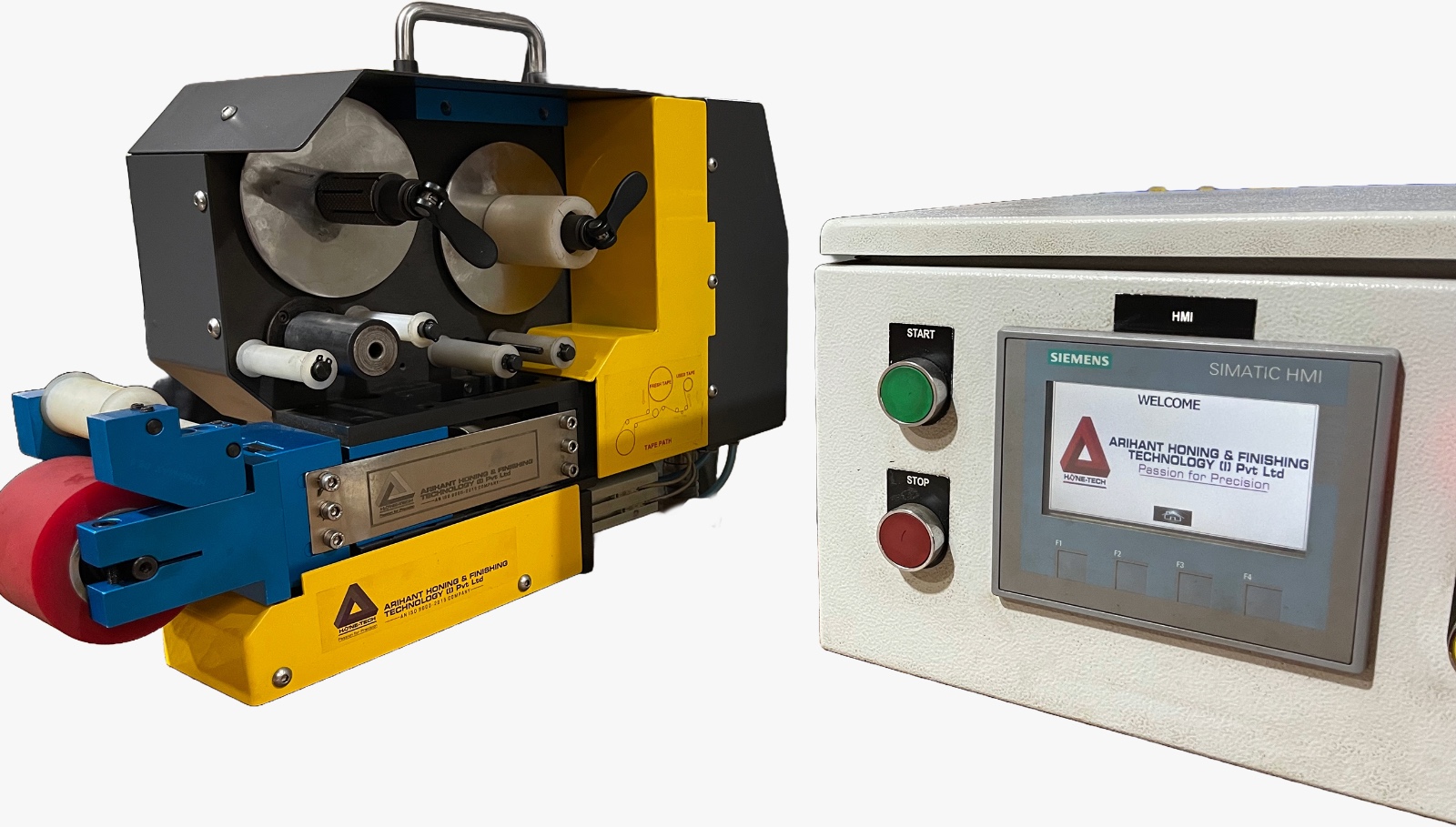

ARIHANT FINISHING ATTACHMENTS
Turn Conventional Machinery into High-Efficiency Superfinishing Cells
Super Finishing attachment devices offer the possibility of carrying out quality-improving or structuring precision surface-machining operations cost-effectively on a lathe, cylindrical grinding machine, or CNC machine.
Once the workpiece has been hard turned, the attachment device is clamped onto the supporting machine and superfinishing is carried out as a final operation. Depending on the device, oscillation frequency can be up to 2,000 double strokes per minute.
The workpiece is rotated and the attachment device is operated via the supporting machine, while the oscillation of the tool and the contact pressure are regulated by the control unit of the attachment device. All rotationally symmetrical workpieces of any hardness that can be fixed between spikes can be processed this way, including large calendar rollers in paper, textile, and plastics industries.
| Technical Feature | Operational Specification |
|---|---|
| HT50 Oscillation Frequency | 0 - 1400 double strokes/min |
| HT50 Oscillation | Standard +/- 1 mm; optional +/- 0.5 / +/- 1.5 / +/- 2 mm |
| HT100 Oscillation Frequency | 0 - 2000 double strokes/min |
| HT100 Oscillation | Standard +/- 0 - 2.5 mm |
| Tape Feed | 10 - 100 mm/min |
| Contact Stroke | 50 mm / 100 mm |
| Contact Pressure | 1 - 6 bar |
| Tape Contact Roller Width | 50 mm / 100 mm |
| Tape Contact Roller Hardness | Standard 65 ShA; optional 35 / 50 / 90 ShA |
| Control Voltage | 24 VDC |
Superfinishing Attachments in Action
HT 50 Finishing Attachment
Compact 50mm tape-finishing attachment in operation
HT50 Camshaft Finishing
High-precision camshaft lobe tape-finishing setup
HT 100 Finishing Attachment
Heavy-duty 100mm tape-finishing attachment running demo
